The MAGNA Roller Grizzly screens are ideally suited for heavy-duty, high tonnage requirements in a wide range of challenging applications where high moisture content or heavily contaminated material persists. The unique design of the rollers creates a wave motion which facilitates a cleaning action of the material, reducing blockages to ensure the highest possible efficiency in the screening process. Two screen width options are available in the MAGNA Roller Grizzly range which come as standard with a hardox steel apron on the feeder, and oversize discharge. Multiple roller and conveyor options can be configured to specialised applications.
-
![]()

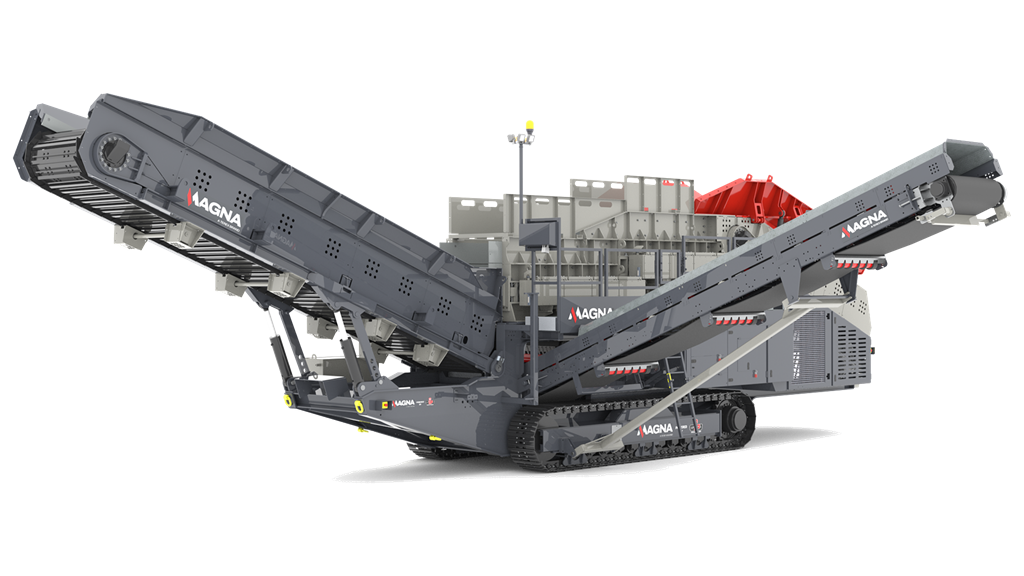

MT10R
The MAGNA MT10R Roller Grizzly screen offers unrivalled screening efficiency for heavy duty applications in difficult materials, for medium scale users requiring outputs up to 300tph. Shaft configuration of 8/8 as standard.
Learn moreSpecification Value Output Potential 331 US tph 300 tph Machine Width 39.4" 1000mm Weight 121,250 lbs 55,000kg -
![]()

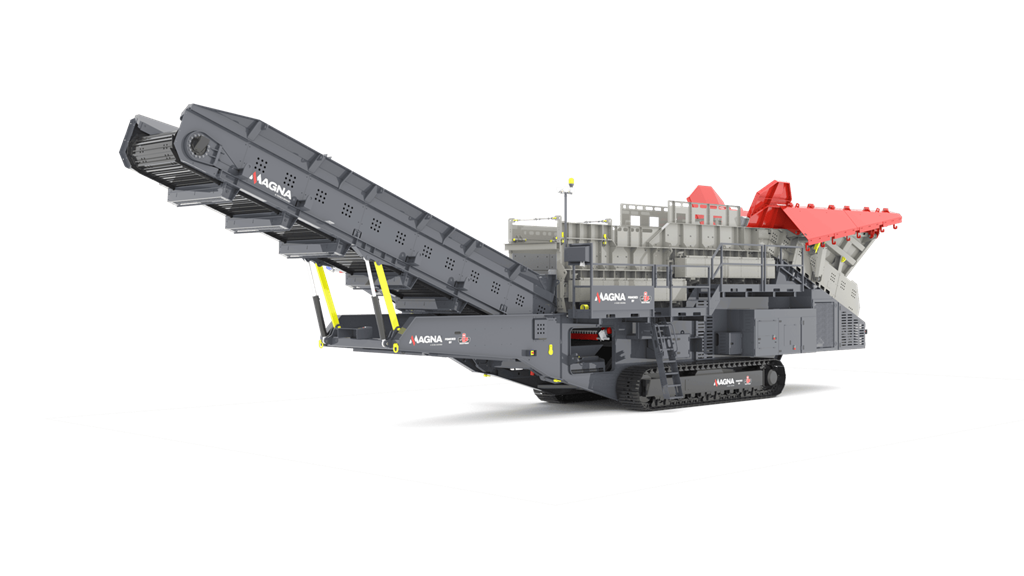

MT13R
The MAGNA MT13R Roller Grizzly screen offers unrivalled screening efficiency for heavy duty applications in difficult materials, for large scale users requiring outputs up to 600tph. Shaft configuration of 10/10 as standard with optional 8/8 or 10/10/8 options available.
Learn moreSpecification Value Output Potential 661 US tph 600 tph Machine Width 51.2" 1300mm Weight 136,687 – 242,508 lbs 62,000kg – 110,000kg
