MAGNA impact crushers are designed for a wide range of applications to include recycling, quarrying and mining. The performance, proven technology and the ease of operation set a new standard in the industry. As on all MAGNA Impact units, blockages are prevented by the proven material flow concept as the internal width of conveying elements increases with the material flow direction through the machine. The robust impact chamber forms the heart of the plant with hydraulically adjustable settings and multiple configurable options to include - Integrated grizzly pan feeder, or 2 / 3 deck Pre-screening options with cross discharge and longitudinal discharge magnet solutions for high content of steel-reinforced concrete to help minimise belt damage. Multiple engine configurations are also available along with various optional drive systems. Post screen units with single or multiple decks offer increased flexibility and solutions for a broad spectrum of applications.
-
MT130I
The MAGNA MT130I impact crusher has an advanced technological design that gives improved material flow through the machine to produce precisely shaped cubical end products in quarrying, mining, demolition and recycling applications. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators. The machine is built around a robust hydraulic drive 1300mm x 1270mm (51” x 50”) impact chamber crusher.
Learn moreSpecification Value Output Potential 771 US tph 700tph Rotor Size 51” x 50” 1300mm x 1270mm Weight 141,100 lbs – 147,700 lbs 64,000kg - 67,000kg -
![MAGNA MT130I SR Impact Crusher]()
MT130I SR
The MAGNA MT130I SR mobile impactor provides the flexibility of a tracked impact crushing and screening plant on one machine. The key component is the on-board detachable single, double or triple deck screen. For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine. The recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product. The machine is built around a robust hydraulic drive 1300mm x 1270mm (50” x 51”) impact chamber crusher.
Learn moreSpecification Value Output Potential 771 US tph 700tph Rotor Size 50” x 51” 1300mm x 1270mm Weight 194,000 lbs – 220,500 lbs 88,000kg - 100,000kg -
![MAGNA MT150I Impact Crusher]()
MT150I
The MAGNA MT150I impact crusher sets the standard when it comes to increased performance requirements with multiple configurable options to meet customer’s needs. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers in recycling, quarrying and mining applications. The machine is built around a robust hydraulic drive 1300mm x 1500mm (51” x 60”) impact chamber crusher.
Learn moreSpecification Value Output Potential 992 US tph 900tph Rotor Size 51” x 60” 1300mm x 1500mm Weight 156,500 lbs – 176,400 lbs 71000kg - 80,000kg -
![MAGNA MT150I SR Impact Crusher]()

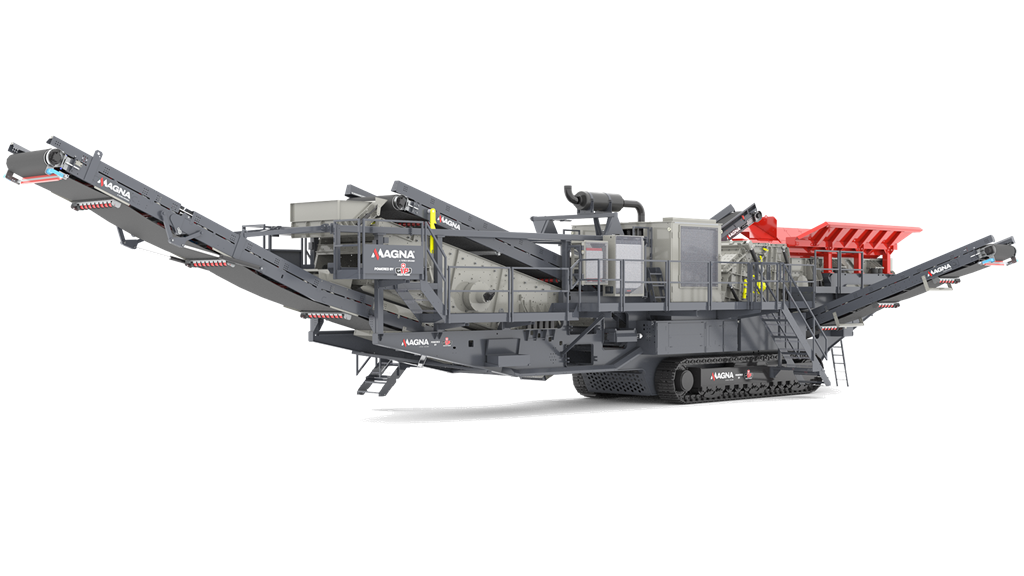

MT150I SR
The MAGNA MT150I SR impact crusher sets the standard when it comes to increased performance requirements to meet customer’s needs with post screen options of 1, 2 and 3 decks of various sizes, complemented by a range of configurable conveyor options. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers in recycling, quarrying and mining applications. The machine is built around a robust hydraulic drive 1300mm x 1500mm (51” x 60”) impact chamber crusher.
Learn moreSpecification Value Output Potential 992 US tph 900tph Rotor Size 51.2" × 59.1" 1300mm x 1500mm Weight 220,500 lbs 100,000kg -
![MAGNA MT170I Impact Crusher]()

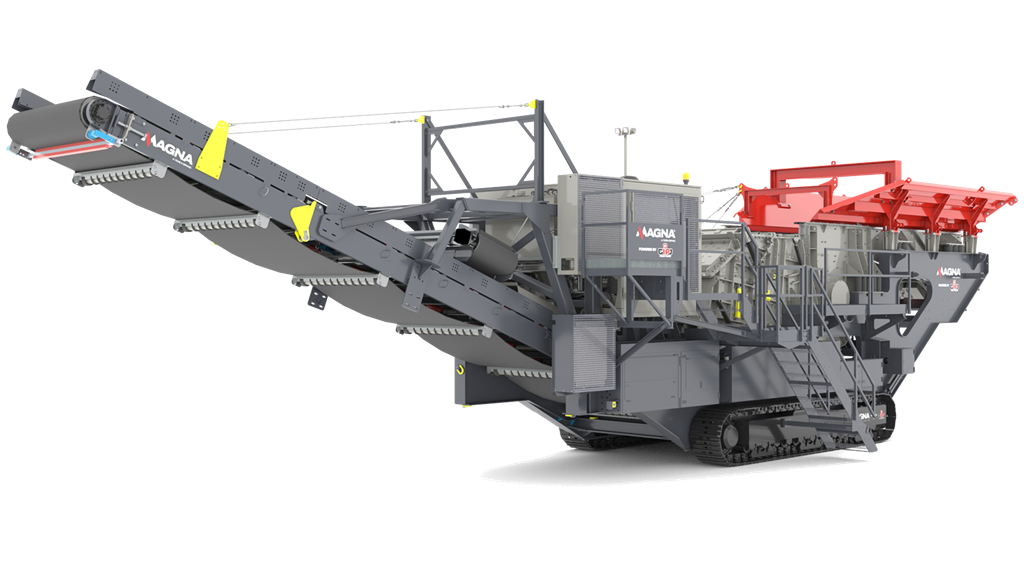

MT170I
The MAGNA MT170I impact crusher is the largest offering in the range with unrivalled performance for high tonnage applications. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers in, quarrying and mining applications. The machine is built around a robust hydraulic drive 1300mm or 1400mm x 1700mm (51”/ 55” x 66”) impact chamber crusher.
Learn moreSpecification Value Output Potential 1212 US tph 1100tph Rotor Size 51.2" or 55.1" × 66.9" 1300mm or 1400mm x 1700mm Weight 191,800 lbs – 211,600 lbs 87,000kg - 96,000kg -
![MAGNA MT170I SR Impact Crusher]()
MT170I SR
The MAGNA MT170I SR impact crusher is the largest offering in the range with unrivalled performance for high tonnage applications with post screen options of 1, 2 and 3 decks of various sizes, complemented by a range of configurable conveyor options. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers in, quarrying and mining applications. The machine is built around a robust hydraulic drive 1300mm or 1400mm x 1700mm (51”/ 55” x 66”) impact chamber crusher.
Learn moreSpecification Value Output Potential 1212 US tph 1100tph Rotor Size 51.2" or 55.1" × 66.9" 1300mm or 1400mm x 1700mm Weight 297,600 lbs 135,000kg +
