MHS6203

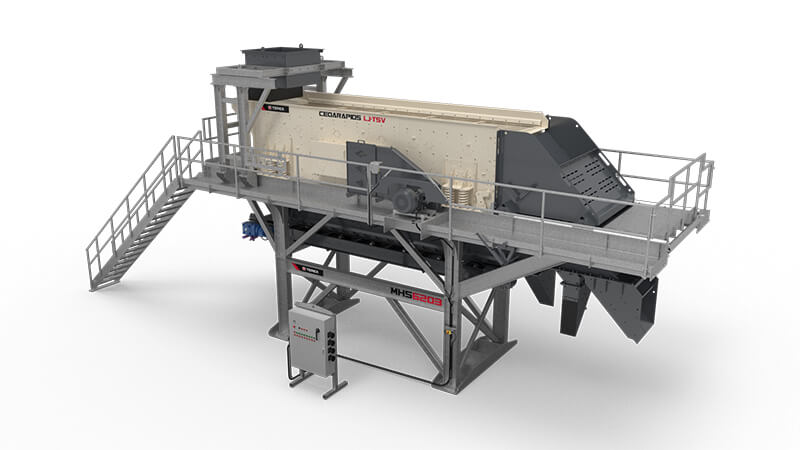

The Cedarapids MHS6203 Modular Horizontal Screen is a high-performance screening solution featuring the industry-renowned 6' x 20' - 3 Deck TSV Screenwith oval stroke action. This advanced screening technology delivers superior efficiency and performance in a wide range of applications.



Cedarapids modular structures are designed for fast assembly, with all components bolting together on-site and requiring minimal wiring. The sturdy, easy-to-use galvanized modular frame ensures durability and longevity while simplifying maintenance. This horizontal screen module ships efficiently in two 40' shipping containers plus the screen, reducing transportation costs and complexity.



The MHS6203 Modular Horizontal Screen is an excellent choice for operators seeking a reliable, efficient, and easily transportable screening solution. Its smart design and robust construction make it ideal for a variety of applications, delivering high performance with minimal setup time.





Technical Documentation

Measurements

Working Dimensions 48'7" x 15'9" x 18'4" / 14802 x 4800 x 5584 mm
Weight 48469 lbs
Number of Decks 3
Motor Size 40 hp
