TJ2440
Static Jaw Crusher

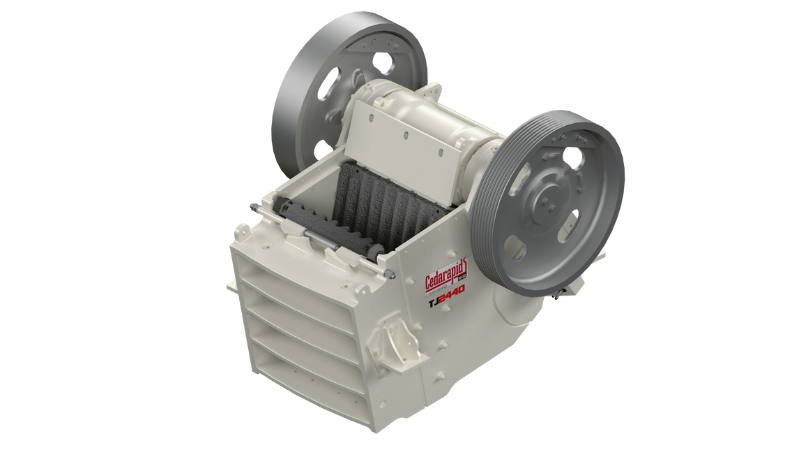

The Cedarapids® TJ2440 is a single toggle jaw crusher, designed for tight closed-side settings while retaining an aggressive nip angle and crushing stroke resulting in maximum productivity. The 24” inlet gape by 40” inlet width, single toggle is a full hydraulic adjusted jaw crusher and is one of the most aggressive and productive jaws in the market in its size range.
The jaw is a fully welded construction with a cast front-end frame, rear-end frame, and swing stock. The large eccentric throw and steep toggle plate angle result in a consistently large stroke of the jaw resulting in a higher productivity and reduction ratios.
Typical applications for our single toggle jaw crushers are mining, quarrying, and recycling.
| Specification | Value |
|---|---|
| Weight | 26,914 lbs. / 12,208 kg |
| Feed Opening | 24”x40” / 600 mm x 1000mm |
| CSS Range | 1.6” – 5.7” / 40-146 mm |
| Capacity | 220-320 tph / 200-290 mtph |
| Motor Size | 150hp / 110kW |
