IC-100RS

Impact Crusher

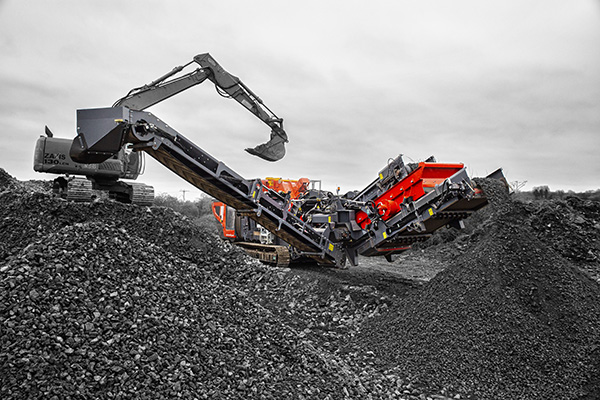

The Finlay® IC-100RS Portable Impact Crusher provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The machine features a direct drive ø860mm x 860mm (Ø34” x 34”) horizontal impact crusher with variable speed control to give operators high levels of fuel efficiency and productivity.

A key feature of the machine is the onboard 2.44m x 1.2m (8’ x 4’) single deck screen. For applications not requiring recirculation of oversize material back to the crushing chamber or stockpiling an oversize product the complete screening and recirculating system can be quickly detached from the machine.

The compact size, ease of transport, quick set up times and intuitive operation make this machine ideal for contract crushers, independent rental houses and small scale operators.

Key Features:

Direct drive Ø860mm x 860mm (Ø34" x 34") crusher chamber with independent belt tensioner allowing for rapid adjustment.
Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons and hydraulic overload protection in event that an un-crushable object enters chamber.
Advanced electronic control system monitors, controls and regulates the speed of the VGF to maintain a consistent flow of material into the impact chamber
Quick and easy detachable 2.44m x 1.2m (8’ x 4’) single deck afterscreen, fines and transfer conveyor for open circuit crushing.
Recirculating conveyor can be rotated from closed loop configuration and utilized for stockpiling making an additional oversized product.

Downloads

Finlay-IC100RS-Compact-Impact-Crusher

Specification	Value
Net Engine Power	Tier 3 - John Deere 260hp \| Tier 4F / Stage V - Volvo 275hp / Tier 3 - John Deere 194kW \| Tier 4F / Stage V - Volvo 205kW
Rotor Size	Ø34” x 33” / Ø860mm x 830mm
Operating Weight	64,595lbs / 29,300kg
Transport Dimensions	Height 9' 10'' \| Width 8' 4'' \| Length 43' 9'' / Height 3.0m \| Width 2.55m \| Length 13.3m
Working Dimensions	Height 12' 6'' \| Width 16' 10'' \| Length 43' 9'' / Height 3.8m \| Width 5.13m \| Length 13.3m

Finlay-IC100RS-Compact-Impact-Crusher

REMOTE PLANT MAXIMISATION.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.

T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
