883+ Spaleck Hybrid

Scalper

883-spaleck-recycling-screen-processing-demolition-waste

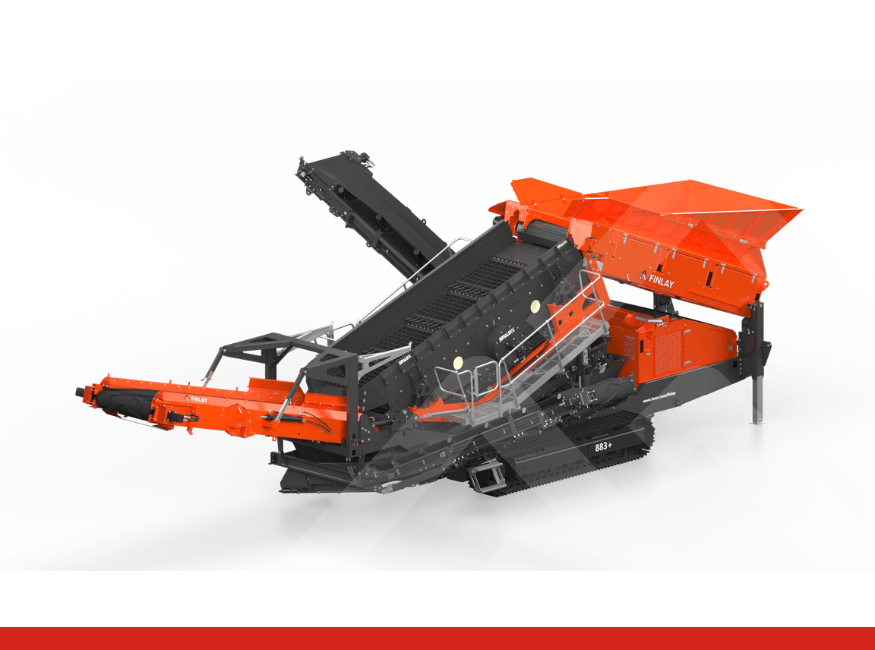

The Finlay® 883+ Spaleck Screener is the ultimate in mobile scalping screening and separation technology. At the heart of the screen is the 2 deck German designed and constructed high performance recycling waste screen with Flip-Flow-Screen Elastica.

The unique stepped top deck design combined with state of the art flip flow technology on the bottom deck catapults the 883+ Spaleck Screener into a class of its own. Its processing capabilities and application flexibility make the machine the only all in one mobile solution for the processing and separation of recycling materials such as incineration slag, shredder light and heavy fraction, scrap metal, electronic scrap, C&D, C&I, bulky waste, compost, plastic fractions, biomass, topsoil etc.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key Features:

Nearly blockage-free screening in the upper and lower deck thanks to tried and tested 3D and Flip-Flow technology.
The 3D screening segments guarantee correct grain size with no long pieces or extraneous material for the tension shaft screen on the lower deck.
The Flip-Flow screen with screwless mounted screen mats avoids unnecessary cleaning.
This combination of 2 system solutions in 1 machine enables you to make enormous savings on conveying equipment, steel structures and space.
T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Downloads

Finlay-883-Spaleck-Scalper

Specification	Value
Net Engine Power: Tier 3 Equivalent	Caterpillar C4.4 130hp / Caterpillar C4.4 97kW
Net Engine Power: Stage IIIA Constant Speed	Caterpillar C4.4 130hp / Caterpillar C4.4 97kW
Net Engine Power: Tier 4F / Stage IV	Caterpillar C4.4 110hp / Caterpillar C4.4 82kW
No. Stockpilers	3 / 3
Weight	67,240lbs / 30,500kg

Finlay-883-Spaleck-Scalper

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.

T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
