883+ Hybrid

Scalper

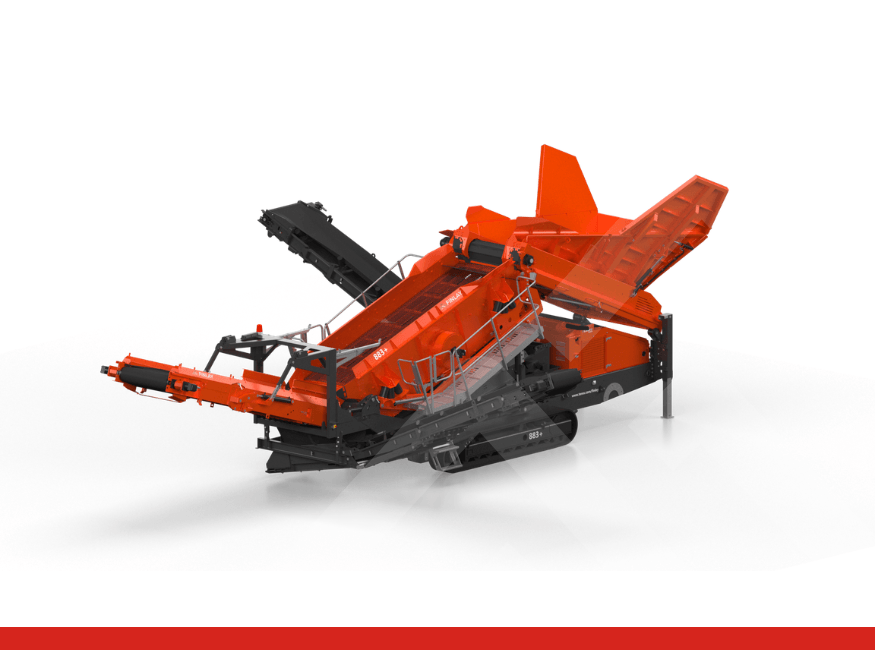

The high performance Finlay® 883+ Hybrid Screen Machine is designed to work after a primary crusher or on it’s own as a front line tracked mobile screening machine. Applications include quarrying, mining construction and demolition debris, topsoil, recycling, sand, gravel, coal and aggregates.

The plant has the capacity to process at a rate of up to 600 tonnes per hour and can be fed either by a tracked mobile crusher, shovel or an excavator.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Features:

The banana profile and increased area of the new bottom deck maximizes screening of fines material.
Modular configuration screen box with 4.8m x 1.5m (16’ x 5’) top deck and 4.8m x 1.5m (16’ x 5’) bottom deck screen.
Aggressive screen box can accept bofor bars, speedharps, woven mesh, punch plate, tines and cascade fingers.
Screen box angle can be hydraulically adjusted to an angle between 13º - 19º.
Screen box discharge end can be hydraulically raised 500mm to facilitate efficient and easy media access and changing.
T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Downloads

Finlay-883+-Scalper

Specification	Value
Net Engine Power: Tier 3 Equivalent	Caterpillar C4.4 130hp / Caterpillar C4.4 97kW
Net Engine Power: Stage IIIA Constant Speed	Caterpillar C4.4 131hp / Caterpillar C4.4 98kW
Net Engine Power: Tier 4F / Stage IV	Caterpillar C4.4 110hp / Caterpillar C4.4 82kW
No. Stockpilers	3 / 3
Weight	68,340lbs / 31,000kg

Finlay-883+-Scalper

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.

T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
