696 2-Deck Hybrid

Inclined Screener

684-hybrid-mobile-screening-plant-in-quarry

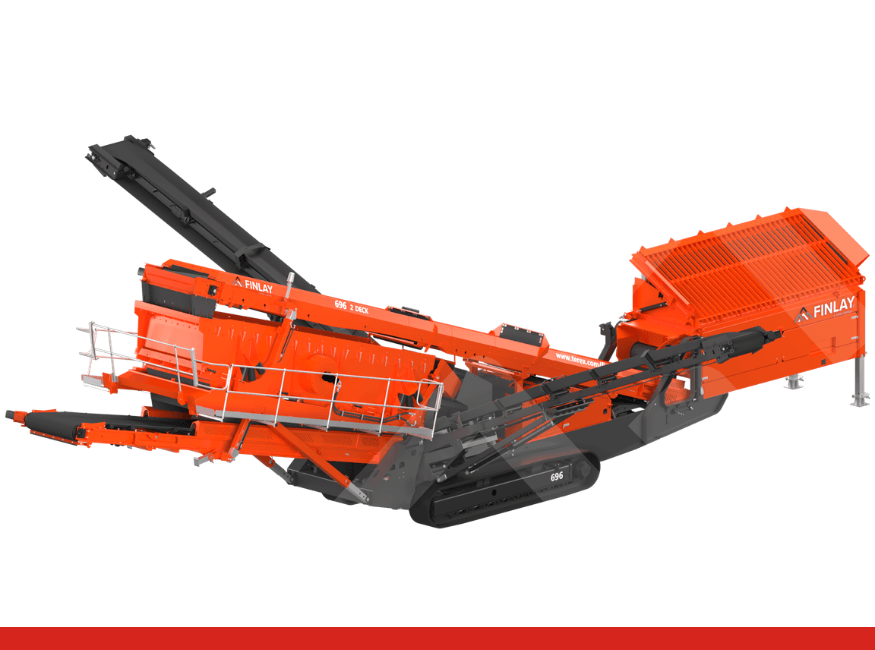

The Finlay® 696 2-Deck Hybrid Inclined Screener has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, wood chip and topsoil applications.

The new high energy screenbox features two full size 6.1m x 1.7m (20’ x 5’ 7”) to give a total screening area of 20.74m² (223ft²). The 8m³ (10.5yd³) hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid.

Operator benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding screenbox catwalks and product conveyors. The compact transport envelope enables the machine to be transported between job sites with ease. Hybrid powerpack is available as an option.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key features:

  • Simple and intuitive folding mechanism for the onboard product conveyors for ease of deployment and onsite movement.
  • Hydraulic folding catwalks as standard for improved onsite efficiency and to enable rapid screenbox deployment.
  • The hydraulics system has been engineered to provide the optimum balance of power and efficiency.
  • Screen box angle can be hydraulically adjusted to an angle between 18°and 32°.
  • T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
Specification Value
Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 (121hp) / Caterpillar C4.4 (90kW)
Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 (131hp) / Caterpillar C4.4 (98.1kW)
Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 (125hp) / Caterpillar C4.4 (93kW)
Net Engine Power: Stage V Caterpillar C4.4 (131hp) / Caterpillar C4.4 (98kW)
Weight 74,550lbs / 33,800kg

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
