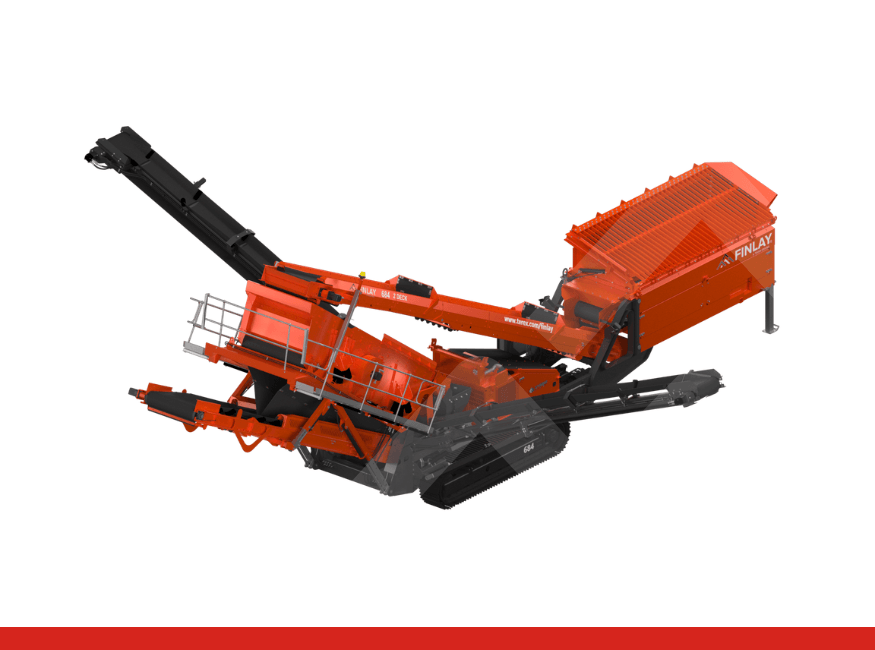

684 2-Deck Hybrid
Inclined Screener
The Finlay® 684 2 deck screener is a compact easily transportable machine that offers operators rapid set up and tear down times.
The screenbox features two large 4.3m x 1.7m (14’ x 5’ 7") inclined screen decks giving a large screening area to provide efficient screening and high capacity.
The screenbox features quick wedge tensioning on the top deck, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes. All four discharge conveyors are adjustable and hydraulically fold for transport.
The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.
Key Features:
- Double deck 4.3m x 1.7m (14’ x 5’ 7") screen with full catwalk access.
- Maximum utilisation of the two 4.3m x 1.7m (14’ x 5’ 7") decks provides ultra-efficient screening capabilities even at small aggregate sizes.
- A combination of quick wedge tensioning on the top deck, convenient access holes and hydraulic tensioning on the bottom deck ensure mesh set up and change out times are kept to an absolute minimum.
- T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
Downloads
MAIN CONVEYOR
FINES CONVEYOR
HOPPER / FEEDER
OVERSIZE & MIDGRADE CONVEYORS
OVERSIZE & MIDGRADE CONVEYORS
SCREENBOX
T-Link Telematics
| Specification | Value |
|---|---|
| Net Engine Power: Tier 3 / Stage IIIA | Caterpillar C4.4 (102hp) / Caterpillar C4.4 77kW |
| Net Engine Power: Stage IIIA Constant Speed | Caterpillar C4.4 (131hp) / Caterpillar C4.4 98.1kW |
| Net Engine Power: Tier 4F / Stage IV | Caterpillar (110hp) / Caterpillar C4.4 82kW |
| No. Stockpilers | 3 / 3 |
| Operating Weight | 63,380lbs / 28,750kg |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
