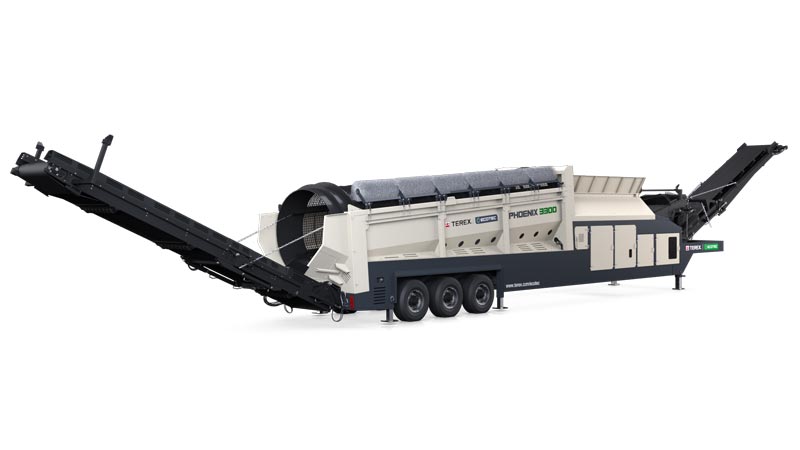

Phoenix 3300
Trommel Screener

Ecotec's Phoenix 3300 is the largest Trommel Screener available within the range, robustly designed it offers optional features such as a heavy duty tipping grid or double deck vibrating grid. It performs equally well in heavy C&D applications as it does in high volume compost production. The 180° swivel fines conveyor, with a 5.8m (19’) discharge, result in the generation of massive stockpiles. This swivel feature can be controlled via a radio remote whilst the trommel screen is in operation, minimising downtime.
A powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally. Woven mesh or heavy duty punch plate panels can be fitted to the trommel drum ensuring all application requirements are met.
Caterpillar Tier 3 or Tier 4 engines combined with powerful hydraulics and auto feeder speed control guarantee the machine is always working at its optimum level. A fifth wheel connection, triple axle bogie and a rapid set up time make the Phoenix 3300 highly mobile.
A powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally. Woven mesh or heavy duty punch plate panels can be fitted to the trommel drum ensuring all application requirements are met.
Caterpillar Tier 3 or Tier 4 engines combined with powerful hydraulics and auto feeder speed control guarantee the machine is always working at its optimum level. A fifth wheel connection, triple axle bogie and a rapid set up time make the Phoenix 3300 highly mobile.

Variable Speed Oversize Conveyor
Mesh or Punch Plate Panels
Adjustable Self Cleaning Brushes
Variable Speed Drum Drive System
Intelligent Feed Control
High Capacity Feed Hopper
Excellent Service Access
Tipping & Vibrating Grid Options
Remote Operated 180 Degree Radial Fines Conveyor
Specification | Value |
---|---|
Engine | CAT C7.1 202HP Tier 3 / CAT C7.1 151kW Tier 3 |
Engine | CAT C4.4 173HP Tier 4 Final / CAT C4.4 129kW Tier 4 Final |
Drum Diameter | 7' 7" / 2,320mm |
Drum Length | 30' 7" / 9,320mm |
Weight | 82,673lbs / 37,500kg |
